Features
|
・Finish inside diameter with right and left chucks at the same time to obtain high-precision concentricity.
|
 |

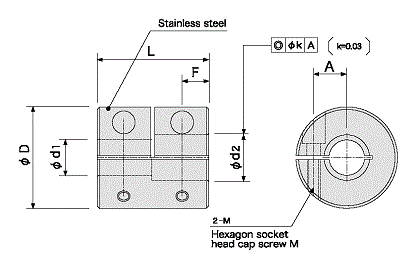

Configuration and materials
|
|
|
Dimensions
| Item No. | D |
Standard hole diameters ød1,ød2 H8 ød1≦ød2 | L | A | F |
M | Fastening torque (N⋅m) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RSC16 | 16 | 5 | 6 | 16 | 5 | 3.8 | 2.5 | 1.2 | |||||||||||
|
RSC20 |
20 | 6 | 8 | 20 | 6.5 | 4.8 | 2.5 | 1.2 | |||||||||||
| RSC25 | 25 | 8 | 10 | 25 | 9 | 6 | 3 | 2 | |||||||||||
|
RSC32 |
32 | 10 | 12 | 14 | 32 | 11 | 7.8 | 4 | 3 | ||||||||||
Specifications
|
Item No. |
Maximum hole diameter (mm) |
Rated torque (N⋅m) |
Maximum torque (N⋅m) |
Maximum Rotating speed (rpm) | Moment of inertia (kg⋅m2) | Mass |
|---|---|---|---|---|---|---|
| (g) | ||||||
| RSC16 | 6 | 0.3 | 0.6 | 9,500 | 8.0x10-7 | 25 |
| RSC20 | 8 | 0.5 | 1 | 7,600 | 3.0x10-6 | 40 |
| RSC25 | 10 | 1 | 2 | 6,100 | 8.0x10-6 | 100 |
| RSC32 | 14 | 2 | 4 | 4,800 | 2.5x10-5 |
160 |
・Since there is no tolerance for misalignment, this type is suitable in cases where misalignment can be absorbed on the shaft side.
