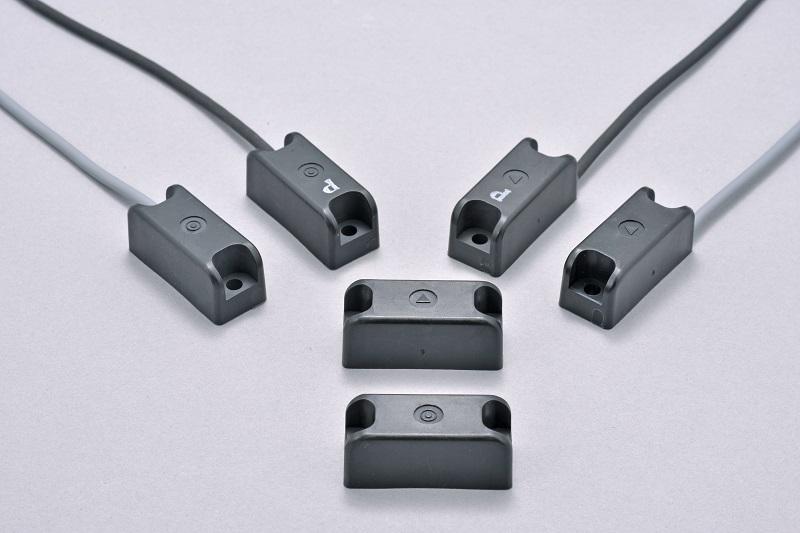

Features

・Compact-sized, highly-sensitive door sensors.
・High reliability and long functional life because of lack of physical contact.
・Any fast moving object detectable.
・Even in the case of incorporation into iron-made doors, capable of practical use by having a φ12 hole to let magnetism work.

Sensing distance

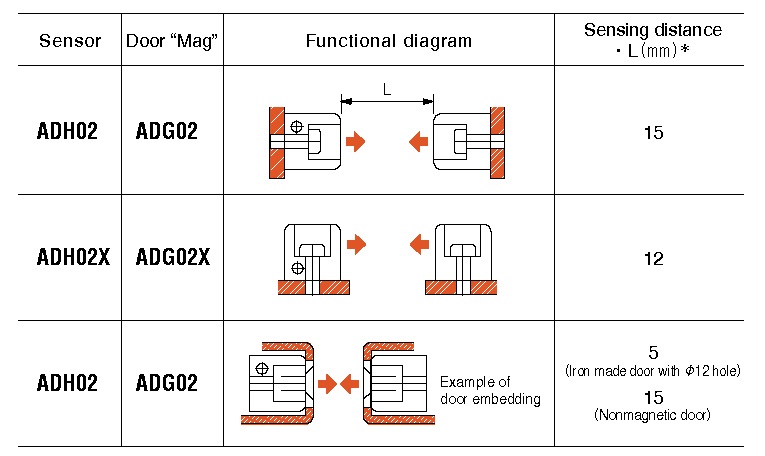

Door distance 22

The actual detecting distance can become longer depending on the surrounding conditions (iron material, etc.) The materials of nonmagnetic door include aluminum, SUS304, glass, wood and resin. You can choose the way to combine a Mag and a sensor; e.g. a Mag with magnetism from a lateral face and upward detecting sensor, the opposite combination, and so forth.

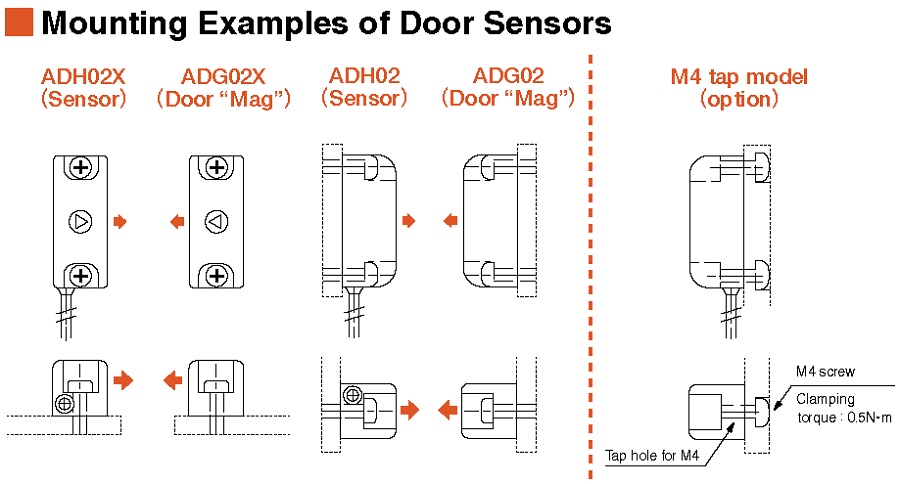

Door mounting 22

Common specifications

Supply Voltage	DC5 ～ 24V
Output specifications	NPN open collector ON when in proximity
Output specifications	If it is OFF in close proximity, (B) is added to the end of the model number
Response time	5μ sec
Voltage Resistance	AC1000V
Voltage Resistance	1 minute/packaged charging part/ between the case
Insulation resistance	DC250V
Insulation resistance	Over 20MΩ in megohms/between the case
Operation Temperrature Range	-20 ～ +85℃ (Without condensation)
Operating Humidity Range	20 ～ 95% RH

*By using cable options, conversion of output specifications, current amplification, and cable extension are possible.

・The circuit diagram must be observed to ensure a correct connection. A reverse connection and a short-circuiting output are strictly prohibited.
・When connecting an inductive load such as relay, be sure to use a freewheeling diode. (Some models already include a built-in freewheeling diode.)

・When installing a sensor, use the torque value designated for each sensor.

・When handling / using the product, do not apply an excessive tension to the cable connection part.

Model

Diagrams(mm)

Specifications

ADH02

ADH02

adh02 zu 22

Sensing Pole	S-pole
Direction to detect	Upward
Sensing distance	15mm (When used in conjunction with a door mag)
Output current	15mA Max
Consumption current	8mA Max
Cable specifications	φ2.8 3wire, Gray 1m
Case materials	GF reinforced PBT : Black
Mounting	M3 tightening torque 0.8N･m
Protective structure	IP67
Curcuit diagram	CNC-3

・By using cable options, conversion of output specifications, current amplification, and cable extension are possible.
・It is possible to change to an M4 tapped hole by modifying the set screw.

ADH02P

ADH02P / ADH02PB

adh02p zu 22

Sensing Pole	S-pole
Direction to detect	Upward
Sensing distance	15mm (When used in conjunction with a door mag)
Output current	80mA Max*
Consumption current	12mA Max
Cable specifications	ADH02P :φ2.8 3wire, Gray 1m
Cable specifications	ADH02PB :φ2.8 3wire, Black 1m
Case material	GF reinforced PBT:Black
Mounting	M3 tightening torque 0.8N･m
Protectiv structure	IP67
Circuit diagram	CNC-15

＊If you need the maximum output current（80mA）, use a 12V to 24V power supply.
・By using cable options, conversion of output specifications and cable extension are possible.
・It is possible to change to an M4 tapped hole by modifying the set screw.

ADH02X

ADH02X

adh02x zu 22

Sensing Pole	S-pole
Direction to detect	Sideways
Sensing distance	12mm (When used in conjunction with a door mag)
Output current	15mA Max
Consumption current	8mA Max
Cable specifications	φ2.8 3wire, Gray 1m
Case material	GF reinforced PBT : Black
Mounting	M3 tightening torque 0.8N･m
Protective structure	IP67
Circuit diagram	CNC-3

・By using cable options, conversion of output specifications, current amplification, and cable extension are possible.
・It is possible to change to an M4 tapped hole by modifying the set screw.

ADH02XP

ADH02XP / ADH02XPB

adh02xp zu 22

Sensing Pole	S-pole
Direction to detect	Sideways
Sensing distance	12mm (When used in conjunction with a door mag)
Output current	80mA Max*
Consumption current	12mA Max
Cable specifications	ADH02XP :φ2.8 3wire, Gray 1m
Cable specifications	ADH02XPB :φ2.8 3wire, Black 1m
Case material	GF reinforced PBT:Black
Mounting	M3 tightening torque 0.8N･m
Protective structure	IP67
Circuit diagram	CNC-15
