| Model | Dimensions(mm) | Specifications |
|---|
|
|
|
| Stroke |
1.2mm |
| Operating force |
0.7N |
| Output current |
10mA Max |
| Consumption current |
8mA Max |
|
Movement until
the operation[PT]
|
0.3～0.6mm |
| Hysteresis movement[MD] |
0.1mm or less |
| Repeat accuracy |
±0.005mm |
| Cable specifications |

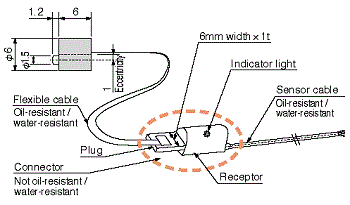

Flexible cable width 3×300 with plug and φ2.8 3wire, Gray 1m
|
| Shaft material |
SUS303 |
| Case material |
GF20/66 nylon |
| Indicator light |
Red |
| Protective structure |
IP65 |
| Curcuit diagram |
CNC-2 |
＊1. Please be careful when handling between the case and
the flexible cable.
＊2. Do not insert and remove the plug more than 20 times.
|
|
|
■Usage example
|

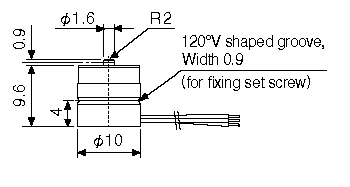

| Stroke |
1.2mm |
| Operating force |
0.9N |
| Output current |
10mA Max |
| Consumption current |
8mA Max |
|
Movement until
the operation[PT]
|
0.3～0.6mm |
| Hysteresis movement[MD] |
0.1mm or less |
| Static withstand load |
50N |
| Repeat accuracy |
±0.005mm |
| Cable specifications |
Core wireφ0.9×3, 1m |
| Case,Shaft material |
SUS303 |
| Protective structure |
IP65 |
| Curcuit diagram |
CNC-1 |
・Please be careful when handling between the case and the cable.
|
|
|
|

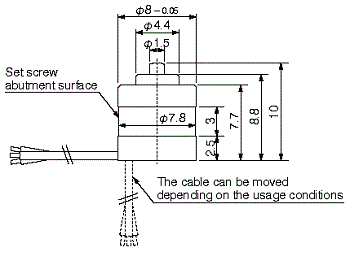

| Stroke |
0.7～1mm |
| Operating force |
0.4N |
| Output current |
10mA Max |
| Consumption current |
8mA Max |
|
Movement until
the operation[PT]
|
0.1mm or less |
| Operating position[OP] |
10±0.2mm(from the button) |
| Static withstand load |
80N(static load : Vicinity of the center with φ3 rod) |
|
100N(static load : Vicinity of the center with
φ10 rod)
|
| Repeat accuracy |
±0.01mm |
| Cable specifications |
Core wire φ0.9×3, 0.3m |
| Case,Shaft material |
SUS303 |
| Protective structure |
IP67 |
| Curcuit diagram |
CNC-1 |
・Do not use in such a way that the tip sinks below the protective cover.
|
|
|
|

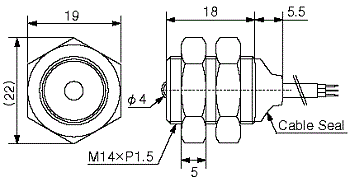

| Static withatand load |
10kN |
| Stroke |
0.8mm |
| Movement until the operation ［ PT］ |
0.15 ～ 0.4mm |
| Hysteresis movement［MD］ |
0.1mm or less |
| Repeat accuracy |
±0.002mm |
| Cable specifications |
STM14：φ2.8 3wire, Gray 1m
|
|
STM14（B）：φ2.8 3wire, Black 1m
|
| Case,nut material |
SUS303 |
| Tip material |
SUS |
| Cable seal material |
Nitrile rubber |
| Mounting |
M14 nut tightening torque 18N･m or less |
| Mounting hole processing deimensions |
φ140+0.5
|
| Protective structure |
IP44 |
| Curcuit diagram |
CNC-3 |
・By using cable options, conversion of output specifications, current amplification, and cable extension are possible.
|
|
|
|

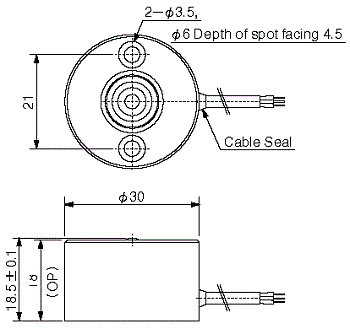

| Static withatand load |
100kN |
| Stroke |
1mm |
| Operating position［OP］ |
18mm |
| Hysteresis movement［MD］ |
0.1mm or less |
| Repeat accuracy |
±0.002mm |
| Cable specifications |
STB30 / STB30-G：φ2.8 3wire, Gray 1m
|
|
STB30（B） / STB30（B）-G：φ2.8 3wire, Black 1m
|
| Case,tip material |
SUS304 |
| Cable seal material |
Nitrile rubber |
| Material of cable protector |
SUS304 |
| Protective structure |
IP67 |
| Curcuit diagram |
CNC-3 |
・By using cable options, conversion of output specifications, current amplification, and cable extension are possible.
|
