Push-button switch

ModelDimensions(mm)Specifications

STM16

stm16 hinban 22

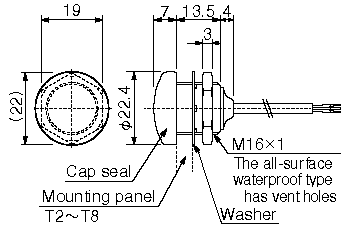

stm16 zu 22

Strock3.5mm
Operating forceF : 2N
W : 3N
WaterproofF : Waterproof front panel surface
W : Both sides waterproof

Movement until

the operation[PT]

1.2mm
Hysteresis0.02mm
Repeat accuracy±0.04mm
Cable specificationsSTM16□:φ2.8 3wire, Gray 1m
STM16□(B) : φ2.8 3wire, Black 1m
Cap seal materialVMQ 70°
Case,Nut materialSUS303
MountingM16 nut tightening torque 20N・m or less
Mounting hole
processing dimensions
φ16 0+0.5
Protective structureIP67
Curcuit diagramCNC-3

・By using cable options, conversion of output specifications, current amplification, and cable extension are possible.
