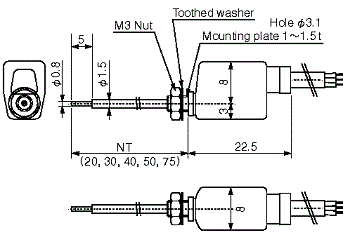

| Stroke |
5mm |
| Operating force |
0.25N |
|
Movement until
the operation[PT]
|
0.5±0.1mm |
| Repeat accuracy |
±0.06mm |
| Cable specifications |
φ2.8 3wire, Gray 1m |
| Nut,Needle,toothed washer material |
SUS |
| Mounting |
M3 nut tightening torque 0.3N･m or less |
| Circuit diagram |
CNC-3 |
・By using cable options, conversion of output specifications, current amplification, and cable extension are possible.
|
|
|
|

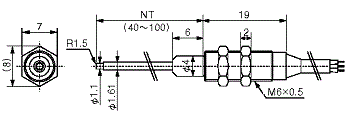

| Stroke |
1.2mm |
| Operating force |
0.25N |
|
Movement until
the operation[PT]
|
0.2～0.5mm |
| Hysteresis movement[MD] |
0.1mm or less |
| Repeat accuracy |
±0.01mm |
| Cable specifications |
N6A：φ2.8 3wire, Gray 1m
|
|
N6B：φ2.8 3wire, Black 1m
|
| Case,Nut,Needle material |
SUS |
| Mounting |
M6 nut tightening torque 2N･m or less |
| Mounting hole processing dimensions |
φ6.50+0.5
|
| Indicator light |
N6□ : Without indicator light |
|
N6□-LED : Approximately 100mm
from the main unit
|
| Protective structure |
IP65 |
| Curcuit diagram |
N6□：CNC-3 |
| N6□-LED：CNC-18 |
・Do not apply a force of 15N or more to the contact part.
・By using cable options, conversion of output specifications, current amplification, and cable extension are possible.
|
