Features

・Clamp-style couplings,available in a wide range combination of diameters:φ4 to φ13.
・Hubs and disk are made of sintered iron alloy for low cost.
・Higher tolerances for parallel and angular misalignments,and vibration than metal-plate couplings.

・Polyimide plate-type is particularly strong against misalignment,with good heat resistance and high electrical insulation.

 cu 01

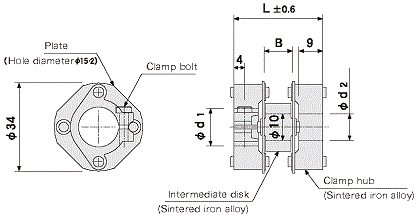

Configuration and materials

Cu zumen 1 en

                   CU()□S/M/L□:Double plate



cu zumen 2 en

                 CU()□N□:Single plate

cu hinban en

Dimensions

Item No.Standard hole diameters ød1,ød2 H8LB
CU( )□N□
 4  6  8 10 13
22 -
CU( )□S□ 27.5 5
CU( )□M□ 30 7.5
CU( )□L□ 32.5 10

･When the hub hole diameter is φ13, the intermediate disk becomes only L size and it becomes screw assembly.

Specifications

 Item No.

Plate

material

 Allowable torque
(N⋅m)		 Maximum rotating speed
(rpm)		 Torsional rigidity
(N⋅m/rad)

Allowable misalignment



Electrical

insulation

 Moment of inertia
(kg⋅m2)		 Mass
(g)

Fastening

torque of

clampbolt

(N･m)

 parallel



(mm)

 angular

(°)



ambient

temper

rature

(℃)

CUP

P

polyimide

0.4t

 1.5

6,000

100

(180)

0.6

(0.1)

7

(3.5)

 -40～200 High

4.0x10-8

(3.0x10-8)

60

(40)




 2.2
CUCF

CF

Carbon FRP 0.4t

 3

500

(850)

0.4

(0.05)

4

(2)

 -25～85 None
CUCG

CG

Carbon

FRP 0.6t

 5

700

(1,200)

0.3

(0.05)

3

(1.5)

 -25～85 None

･Please comform to the clamp bolt fastening torque values in the above table.

･Value in ( ) is for single plate type.
