Door switches

ModelDimensions(mm)Specifications

■Two-wire-system



STS9293

sts92 hinban 22

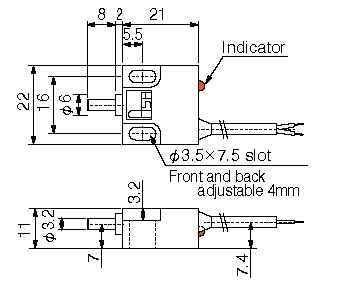

sts92 zu 22

Stroke 8mm
Operating force 0.4N

Movement until

the operation[PT]

0.3~0.8mm
Hysteresis movement[MD] 0.1mm or less
Repeat accuracy ±0.01mm
Cable specifications STS92:φ2.8 2wire, Gray 1m
STS92(B):φ2.8 2wire, Black 1m
Case material GF reinforced PBT
Shaft material SUS303
Mounting M3 tightening torque 0.3N・m
Indicator light Red
Protective structure IP65
Curcuit diagram CNC-8

・Be sure to connect to the load before use.
・Cable extension are possible.

■Three-wire-system



STS9293

sts93 hinban 22

sts93 zu 22

Stroke 8mm
Operating force 0.4N

Movement until

the operation[PT]

0.3~0.8mm
Hysteresis movement[MD] 0.1mm or less
Repeat accuracy ±0.01mm
Output current 80mA*
Consumption current 15mA
Cable specifications

STS93:φ2.8 3wire, Gray 1m

STS93(B):φ2.8 3wire, Black 1m

Case material GF reinforced PBT
Shaft material SUS303
Mounting M3 tightening torque 0.3N・m
Indicator light Red
Protective structure IP65
Curcuit diagram CNC-16

*If you need the maximum output current(80mA), use a 12V to 24V power supply.
・By using cable options, conversion of output specifications and cable extension are possible.

■Three-wire-system



STS93E 22

sts93e hinban 22

sts93e zu 22

Stroke 8mm
Operating force 0.4N

Movement until

the operation[PT]

0.3~0.8mm
Hysteresis movement[MD] 0.1mm or less
Repeat accuracy ±0.01mm
Cable specifications

STS93E:φ2.8 3wire, Gray 1m

STS93E(B):φ2.8 3wire, Black 1m

Case material GF reinforced PBT
Shaft material SUS303
Mounting M3 tightening torque 0.3N・m
Protective structure IP65
Curcuit diagram CNC-3

・By using cable options, conversion of output specifications, current amplification, and cable extension are possible.
