Model | Dimensions(mm) | Specifications |
![BSTM6](/en/images/contactless-touch-switches/BSTM6.jpg)
![bstm6 hinban 22](/en/images/contactless-touch-switches/bstm6_hinban_22.gif)
|
![bstm6 zu 22](/en/images/contactless-touch-switches/bstm6_zu_22.gif)
■Installation image drawing
![BSTM6 en example](/en/images/contactless-touch-switches/BSTM6_en_example.gif)
|
Stroke |
1.2mm |
Operating force |
0.5N |
Movement until
the operation[PT]
|
0.1~0.3mm |
Hysteresis movement[MD] |
0.1mm or less |
Repeat accuracy |
±0.001mm |
Cable specifications |
BSTM6:φ2.8 3wire, Gray 1m |
BSTM6(B):φ2.8 3wire, Black 1m |
Case,nut material |
SUS303 |
Ball material |
SUS304 |
Mounting |
M6 nut tightening torque 2N・m or less |
Mounting hole processing deimensions |
φ60+0.5
|
Curcuit diagram |
CNC-3 |
*The corner that hits the ball should be R0.5 or more.
・Do not apply a force of 15N or more to the contact part. ・By using cable options, conversion of output specifications, current amplification, and cable extension are possible.
|

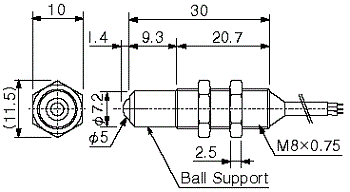

![BSTM8](/en/images/contactless-touch-switches/BSTM8.jpg)
![bstm8 hinban 22](/en/images/contactless-touch-switches/bstm8_hinban_22.gif)
|
![bstm8 zu 22](/en/images/contactless-touch-switches/bstm8_zu_22.gif)
■Installation image drawing
![BSTM6 en example](/en/images/contactless-touch-switches/BSTM6_en_example.gif)
|
Stroke |
1.4mm |
Operating force |
0.9N |
Movement until
the operation[PT]
|
0.1~0.3mm |
Hysteresis movement[MD] |
0.1mm or less |
Repeat accuracy |
±0.001mm |
Cable specifications |
BSTM8:φ2.8 3wire, Gray 1m
|
BSTM8(B):φ2.8 3wire, Black 1m
|
Case,nut material |
SUS303 |
Ball material |
SUS304 |
Mounting |
M8 nut tightening torque 5N・m or less |
Mounting hole processing deimensions |
φ80+0.5
|
Curcuit diagram |
CNC-3 |
*The corner that hits the ball should be R0.5 or more.
・Do not apply a force of 15N or more to the contact part. ・By using cable options, conversion of output specifications, current amplification, and cable extension are possible.
|

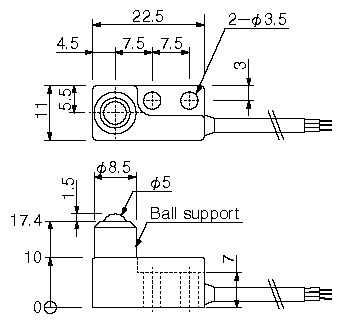

![BSTF](/en/images/contactless-touch-switches/BSTF.jpg)
![bstf hinban 22](/en/images/contactless-touch-switches/bstf_hinban_22.gif)
|
![bstf zu 22](/en/images/contactless-touch-switches/bstf_zu_22.gif)
■Installation image drawing
![BSTF en example](/en/images/contactless-touch-switches/BSTF_en_example.gif)
|
Stroke |
1.5mm |
Operating force |
0.9N |
Movement until
the operation[PT]
|
0.1~0.3mm |
Hysteresis movement[MD] |
0.1mm or less |
Repeat accuracy |
±0.002mm |
Cable specifications |
BSTF:φ2.8 3wire, Gray 1m |
BSTF(B):φ2.8 3wire, Black 1m |
Case material |
Zinc die casting |
Ball material |
SUS304 |
Curcuit diagram |
CNC-3 |
*The corner that hits the ball should be R0.5 or more.
・Do not apply a force of 20N or more to the contact part. ・By using cable options, conversion of output specifications, current amplification, and cable extension are possible.
|
