Tool sensor

ModelDimensions(mm)Specifications

 TSM102 22

tsm102 hinban 22

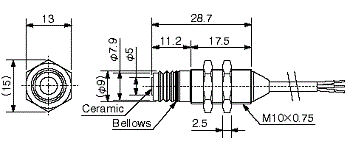

tsm102 zu 22

Strock 3mm
Operating force 0.7N

Movement until

the operation[PT]

0.2~0.5mm
Hysteresis movement[MD] 0.1mm or less
Repeat accuracy ±0.001mm
Cable specifications φ2.8 3wire, Gray 1m
Case,Nut material SUS303
Mounting

M10 nut tightening torque 12N・m

or less

Mounting hole
processing dimensions

φ100+0.5

Protective structure  IP67
Curcuit diagram CNC-3

・By using cable options, conversion of output specifications, current amplification, and cable extension are possible.
