ModelDimensions(mm)Specifications

PM5

pm5 hinban 22

pm5 zu 22



■Configurable range

PM5PM6 en example
Operating point 1～4
Strock 6mm
Operating force 0.8～1.2N
Hysteresis 0.08mm or less
Repeat accuracy ±0.001mm
Cable specifications φ3.6(Max) 3～6wire, Black 1m
Rubber boot material Nitrile rubber
Case,Nut material SUS303
Mounting M14 nut tightening torque 18N･m
Mounting hole processing dimensions

φ140+0.5
Indicator light Approximately 120mm from the main unit
Curcuit diagram CNC-13

・The dimensions of the indicator light vary depending on the number of switches.
Number of switches 1：“CAL-01”
Number of switches 2：“CAL-02”
Number of switches 3 or 4：“CAL-04”
Please check each.

PM6

pm6 hinban 22

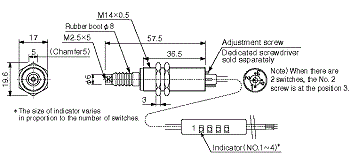

pm6 zu 22



■Configurable range

PM5PM6 en example



PM6 en example
Operating point 1～4
Stroke 6mm
Operating force 0.8～1.2N
Hysteresis 0.08mm or less
Repeat accuracy ±0.001mm
Cable specifications φ3.6(Max) 3～6wire, Black 1m
Rubber boot material

Nitrile rubber
Case,Nut material SUS303
Mounting hole processing dimensions

φ140+0.5
Mounting M14 nut tightening torque 18N･m or less
Indicator light Approximately 120mm from the main unit
Curcuit diagram CNC-13

・The dimensions of the indicator light vary depending on the number of switches.
Number of switches 1：“CAL-01”
Number of switches 2：“CAL-02”
Number of switches 3 or 4：“CAL-04”
Please check each.
