Flexible plate couplings

Structure of flexible plate couplings

Flexible plate coupling absorbs shaft misalignment through plate bending. There are two types of structure; they are single plate type and double plates type. They must be chosen correctly in consideration of shaft misalignment conditions to avoid unforeseen failure of rotating system.

CompositionSolutionCompositionSolution
no parallel misalignment taisaku 01 en no angular misalignment taisaku 01 en
small parallel misalignment taisaku 03 en small angular misalignment taisaku 02 en
more parallel misalignment taisaku 05 en more angular misalignment taisaku 04 en

Plate material characteristics

Polyimide

Polyimide is a super engineering plastic that is highly heat resistant and extremely chemically stable. It also has a high tensile strength and elasticity, and its outstanding flexibility enables it to be used for the flexible plates of couplings, enabling flexibilities to be achieved that are not possible using metals.

Carbon FRP (fiber reinforced plastic)

This material is made by solidifying textiles made of carbon fibers by means of resin impregnation. It is the strongest and most elastic of commercially available materials, and has excellent mechanical characteristics, such as low creep and high fatigue strength (which is 3 to 7 times greater than that of aluminum alloys). This material offers a well-balanced set of characteristics for the flexible plates of couplings-high torsional rigidity and transmission torque, without fatigue damage due to bending caused by parallel and angular misalignments.

Stainless steel

This material utilizes thin stainless steel plates with added spring characteristics provided by heat treatment. This material has the highest tensile strength of the three materials, so it offers high rigidity and high torque for the flexible plates of couplings. On the other hand, it offers the least tolerance for axial mismatching; particularly parallel misalignment, so it must be assembled carefully.

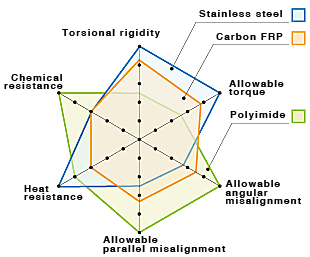

Performance radar chart

hikaku zu enEXAMPLE OF LIFE TESTING RESULTS

Flexible plate couplings product list

Click on the picture to jump to product description.


ML

Outer diameter 10-50
Shaft diameter 2-25
Features

・Double plates, set screw style flexible coupling with hubs made of die cast aluminum.
・Two types of plate materials: polyimide and carbon FRP.

Learn more

mlc 01

MLC

Outer diameter 13-50
Shaft diameter 3-24
Features

・Double plates, clamp style flexible coupling with hubs made of die cast aluminum.
・Three types of plate materials: polyimide, carbon FRP and stainless steel.

Learn more

ms 01

MS

Outer diameter 10-50
Shaft diameter 2-25
Features

・Single plate, set screw style flexible coupling with hubs made of die cast aluminum.
・Two types of plate materials: polyimide and carbon FRP.

Learn more

msc 01

MSC

Outer diameter 13-50
Shaft diameter 3-24
Features

・Single plate, clamp style flexible coupling with hubs made of die cast aluminum.
・Three types of plate materials: polyimide, carbon FRP and stainless steel.

Learn more

tss 01

TSS

Outer diameter 25-40
Shaft diameter 3-18
Features

・Single plates, set screw style flexible coupling with hubs made of die cast aluminum.
・For more compact design or use in applications where space is limited.

Learn more

tsc 00

TSC

Outer diameter 32-40
Shaft diameter 5-18
Features

・Single plates, clamp style flexible coupling with hubs made of die cast aluminum.
・For more compact design or use in applications where space is limited.

Learn more

ksc 01

KSC

Outer diameter 60-80
Shaft diameter 18-35
Features

・Single plate, clamp style flexible coupling with machined aluminum hubs: for large diameters
・Two types of plate materials: carbon FRP and stainless steel.

Learn more

klc 01

KLC

Outer diameter 60-80
Shaft diameter 18-35
Features

・Double plates, clamp style flexible coupling with machined aluminum hubs: for large diameters
・Two types of plate materials: carbon FRP and stainless steel.

Learn more

c1 01

C1

Outer diameter 33.4
Shaft diameter 6-16
Features

・Single / double plates, set screw style flexible coupling with hubs made of die cast aluminum: for coupling different shaft diameters from ø6 to ø20.
・Carbon FRP plate offered in three selectable thicknesses.

Learn more

c2l 00

C2L

Outer diameter 64
Shaft diameter 14-30
Features

・Double plates, set screw style and taper locked style flexible coupling, with hubs made of die cast aluminum.
・Two types of plate materials: polyimide and carbon FRP.

Learn more

c2s 00

C2S

Outer diameter 64
Shaft diameter 14-30
Features

・Single plates, set screw style and taper locked style flexible coupling, with hubs made of die cast aluminum.
・Two types of plate materials: polyimide and carbon FRP.

Learn more

cu 01

CU

Outer diameter 34
Shaft diameter 4-13
Features

・Single / double plates , clamp style flexible coupling with hubs made of sintered iron alloy: for coupling different shaft diameters from ø4 to ø13.
・Two types of plate materials: polyimide and carbon FRP.

Learn more

cuh 01

CUH

Outer diameter 34
Shaft diameter 6-14
Features

・Single / double plates , clamp style flexible coupling with hubs made of sintered stainless steel: for coupling different shaft diameters from ø6 to ø14.
・Two types of plate materials: polyimide and carbon FRP.

Learn more
