Slim switch

ModelDimensions(mm)Specifications

STS83 22

sts83 hinban 22

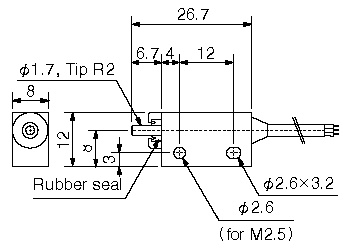

sts83 zu 22

Stroke 3mm
Operating force 0.7N

Movement until

the operation[PT]

0.2~0.5mm
Hysteresis movement[MD] 0.1mm or less
Repeat accuracy ±0.001mm
Cable specifications STS83:φ2.8 3wire, Gray 1m
STS83(B):φ2.8 3wire, Black 1m
Case material Zinc die casting
Shaft material SUS303
Protective structure IP67
Curcuit diagram CNC-3

・Do not apply a force of 15N or more to the contact part.
・By using cable options, conversion of output specifications,
current amplification, and cable extension are possible.
