Contactless touch switches

Features

・Long lasting, stable operation in repeated use, ensured by contactless circuit.
・Very high precision in operating point repeatability.
・Environment resistance achieved by the configuration separating the moving part from the sensing part.
・Can be customized to a limited operational force spec.
Features

Mechanism

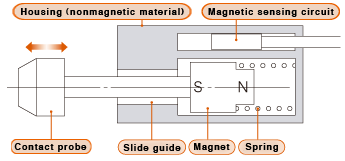

An external input pushing or pulling the probe moves the magnet back or forth, respectively. By sensing the magnet's movements and then inducing ON/OFF actions, the magnetic sensing circuit serves as a touch sensor. Since the sensor reacts at steep slopes of magnetic gradient, highly sensitive and precise repeatability is provided for operating points. Mechanism

Common specifications

・3-wire systems

Power supply voltage DC5 ~ 24V
Output specifications NPN open collector
:when proximity is turned ON.

The proximity is turned OFF

:with the final format (B).

Output current Without LED:15mA
With LED:12mA
Consumption current Without LED:15mA
With LED:12mA
Response speed 60 or less per minute
Cable length 1m
Cable specifications N.O.:Gray
N.C.:Black
Withstand voltage AC1000V

1 minute/packaged part/

between the case

Insulation resistance DC250V
 Over 20MΩ in megohms/between the case
 Ambient operating temperature  -20 ~ +85℃
Ambient operating humidity 20 ~ 95% RH

・2-wire systems

Power supply voltage DC12 ~ 24V
Output current 50mA
Leakage current Off state under maximum 0.5mA
Response speed 60 or less per minute
Cable length 1m
Cable specifications N.O.:Gray
N.C.:Black
Withstand voltage AC1000V

1 minute/packaged part/

between the case
Insulation resistance DC250V
Over 20MΩ in megohms/between the case
 Ambient operating temperature  -20 ~ +85℃
Ambient operating humidity 20 ~ 95% RH

*Conversion and current amplification are available with optional cables.

・The circuit diagram must be observed to ensure a correct connection. A reverse connection and a short-circuiting output are strictly prohibited.
・When connecting an inductive load such as relay, be sure to use a freewheeling diode.

・When installing a switch, use the torque value designated for each switch.

・When handling / using the product, do not apply an excessive tension to the cable connection part.

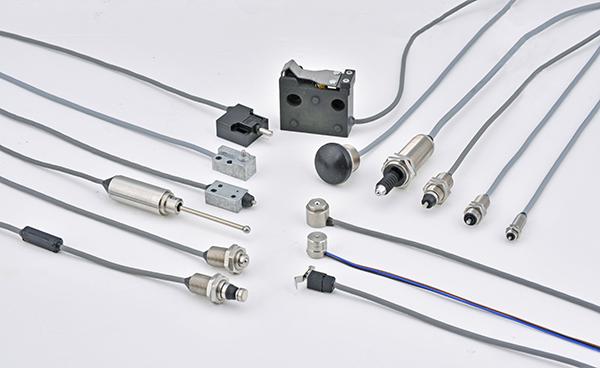

Lineup of Contactless touch switches

Micro switches

microsw 01

Smallest contactless touch switches.

Learn more

Needle switches


The needle shaped probe is capable of performing detection in intercalated structures and contact detection in high temperature areas.

Learn more

Touch switches

Touch switches

Screw threaded switch for easy adjustment of operating points.

Learn more

Touch sensors

Touch sensors

Multiple operating point setting (up to 4 positions) offered by high precision touch sensor.

Learn more

Push-button switch

STM16

Outdoor, waterproof type such as rainwater.

Learn more

Flat switch

Flat switches

Rectangular flat housing for easy mount.

Learn more

Slim switch

STS8

High precision switch for precision equipment mounting.

Learn more

Limit switch

HS1

Contactless switch compatible with commercially available large micro switches.

Learn more

Stopper switches

Stopper switches

Robust body having enough load capacity as a mechanical stopper.

Learn more

Door switches

STS9293

Easy installation and reliable detection of opening and closing of doors etc.

Learn more

Tool sensor

TSM101

Affordable and long life. Screw type that can be used easily.

Learn more

Ball switches

BSTM6

Also supports top, side and diagonal contacts. For detection of objects passing from the side.

Learn more

Ball plunger switches

Ball plunger switches

Ball contact tip suited for contact detection through sliding movement.

Learn more



Option

Optional cables

Optional cables

By installing along the pathway of switch cables, the optional cables add extra functions such as current amplification, output configuration change and indicator.

Learn more

Optional connectors

Optional connectors

Connector options are offered for cable extension.

Learn more
