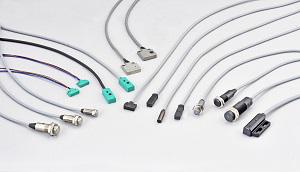

Features

・Magnetic proximity sensors are sensors that are activated / deactivated in response to the changes in the intensity of magnetic field.
・Incorporating Hall IC, the models have polarity with the south-pole side as the standard sense zone.
・High-speed response（less than 5μ sec）, good for speedometers and rotational speed meters.
・Higher sensitivity（wider operation distance to a target）and reduced size compared to typical sensors of a kind.
・Both the original alignment of the servo motor and overrun detection can be conducted with the double sensor.
・It is a reliable sensor that is less susceptible to interference caused by radiation noise.

Mechanism

A magnetic proximity sensor is a product that operates/stops according to changes in magnetic strength. Magnetic strength in space can be expressed by its direction and magnitude, but conventional sensors and reed switches detect magnetic fields regardless of the approaching direction. In the case of our products using Hall effect ICs, only the component in the vertical direction to the detection surface is picked up. For this reason, our magnetic proximity sensors have highly accurate operating characteristics.

The way to use double sensor

Model "AH002-D"

Magnetic proximity sensors are compact and can be placed in close proximity, as there is no magnetic interaction between the sensors. Taking advantage of these advantages, the double sensor incorporates a sensor with two operating points in one case.
As it can perform both origin and overrun detection of the servo system, it contributes to downsizing the machine unit and reducing assembly costs.

Common specifications

Power supply voltage	DC5 ～ 24V
Output specifications	NPN open collector :ON when in proximity.
Output specifications	*PNP, current amplification, and output conversion are possible with cable options.
Response time	5μ sec
Voltage Resistance	AC1000V
Voltage Resistance	1 minute/packaged charging part/between the case
Insulation Resistance	DC250V
Insulation Resistance	Over 20MΩ in megohms/between the case
Operation Temperrature Range	-20 ～ +85℃（Without condensation）
Operating Humidity Range	20 ～ 95% RH

*By using cable options, conversion of output specifications, current amplification, and cable extension are possible.

・The circuit diagram must be observed to ensure a correct connection. A reverse connection and a short-circuiting output are strictly prohibited.
・When connecting an inductive load such as relay, be sure to use a freewheeling diode. (Some models already include a built-in freewheeling diode.)

・When installing a sensor, use the torque value designated for each sensor.

・When handling / using the product, do not apply an excessive tension to the cable connection part.

Model

Diagrams(mm)

Specifications

ah002

AH002-S

AH002 D 22

AH002-D

ah002 zu 22

■Mounting bracket

ah002 bracket 22

Do not drive a M3 screw in too tightly.

Sensing pole	S-pole
Magnetic sensitivity	2.5～3.5mT
Direction to detect	Downward
Output current	15mA Max
Consumption current	8mA Max
Cable specifications	AH002-S:φ2.8 3wire,Gray 1m
Cable specifications	AH002-D:φ3.1 4wire,Black 1m
Case material	GF reinforced PBT : Green
Mounting	M3 tightening torque 0.2N･m
Built-in-sensor	AH002-S:single
Built-in-sensor	AH002-D:Double Dfferential distance 1.5±0.3mm
Indicator light	AH002-S:Red
Indicator light	AH002-D:Output 1 …Green Output 2 …Red
Protective structure	IP65
Curcuit diagram	AH002-S:CNC-17
Curcuit diagram	AH002-D:CNC-5

･The AH002-S can convert output specifications, amplify current, or extend the cable by using a cable options.

･The AH002-D can only extend the cable.

AH003 22

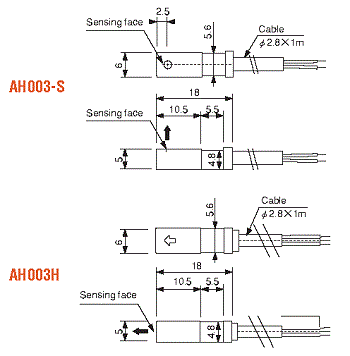

AH003/AH003H

ah003 zu 22

■Mounting bracket AH003 en bracket

Sensing pole	S-pole
Magnetic sensitivity	2.5～3.5mT
Direction to detect	AH003:Upward
Direction to detect	AH003H:Forward
Output current	15mA Max
Consumption current	8mA Max
Cable specifications	φ2.8 3wire,Gray 1m
Case material	GF reinforced PBT:Black
Mounting	Dedicated mounting bracket
Protectiv structure	IP65
Circuit diagram	CNC-3

･By using cable options, conversion of output specifications, current amplification, and cable extension are possible.

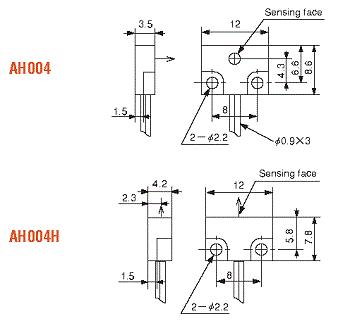

AH004/AH004H

ah004 zu 22

Make sure not to tighten the M2 screws

too tight with torques under 0.15N･m.

Sensing pole	S-pole
Magnetic sensitivity	2.5～3.5mT
Direction to detect	AH004:Upward
Direction to detect	AH004H:Forward
Output current	15mA Max
Consumption current	8mA Max
Cable specifications	Core wire φ0.9×3 length 0.3m
Case material	GF reinforced PBT:Green
Mounting	M2 tightening 0.15N･m
Protective structure	IP65
Circuit diagram	CNC-3

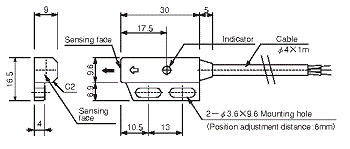

AH005H

ah005 zu 22

Sensing pole	AH005H-S:S-pole
Sensing pole	AH005H-N:N-pole
Magnetic sensitivity	0.9±0.2mT
Direction to detect	Forward
Output current	15mA Max
Consumption current	8mA Max
Cable specifications	S-pole:φ4 3wire, Gray 1m
Cable specifications	N-pole:φ4 3wire, Black 1m
Case material	GF reinforced PBT:Black
Mounting	M3 tightening torque 0.3N･m
Indicater light	Red
Protective structure	Equivalent to IP67
Circuit diagram	CNC-7

･Cable options are possible.

AH0010/AH0010X

Sensing pole	S-pole
Magnetic sensitivity	5～7mT
Direction to detect	AH0010:Forward
Direction to detect	AH0010X:Upward
Output current	10mA Max
Consumption current	8mA Max
Cable specifications	φ2.8 3wire,Gray 1m
Case materials	SUS
Mounting	M3 tightening torque 0.2N･m or less
Protective structure	IP65
Circuit diagram	CNC-1

･By using cable options, conversion of output specifications, current amplification, and cable extension are possible.

AH013

ah013 zu 22

Sensing pole	AH013-S:S-pole
Sensing pole	AH013-N:N-pole
Magnetic sensitivity	2.5～3.5mT
Direction to detect	Forward
Output current	10mA Max
Consumption current	8mA Max
Cable specifications	S-pole:φ2.8 3wire,Gray 1m
Cable specifications	N-pole:φ2.8 3wire,Black 1m
Case materials	GF reinforced PBT:Gray
Mounting	M7 nut tightening torque 0.3N･m
Mounting	It is recommendable to bond the screw in order to prevent loosening.
Mounting hole processing deimensions	φ7₀^+0.5
Protective structure	IP65
Circuit diagram	CNC-1

･By using cable options, conversion of output specifications, current amplification, and cable extension are possible.

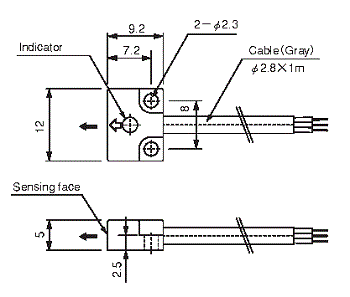

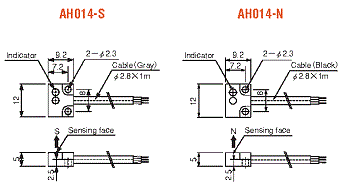

AH014/AH014H

Sensing pole	AH014-S/AH014H:S-pole
Sensing pole	AH014-N:N-pole
Magnetic sensitivity	3～4mT
Direction to detect	AH014□:Upward
Direction to detect	AH014H:Forward
Output current	20mA Max
Consumption current	8mA Max
Response speed	16μ sec
Cable specofocatopns	S-pole:φ2.8 3wire,Gray 1m
Cable specofocatopns	N-pole:φ2.8 3wire,Black 1m
Case materials	GF reinforced PBT:Black
Mounting	M2 tightening torque 0.15N･m
Indicator light	Red
Protective structure	IP65
Curcuit diagram	CNC-12

･By using cable options, conversion of output specifications, current amplification, and cable extension are possible.

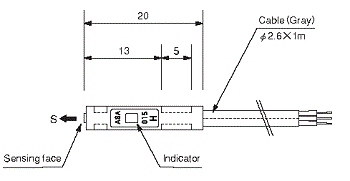

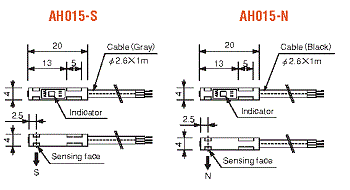

AH015/AH015H

ah015 zu 22

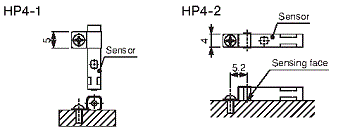

■Mounting bracket

ah015 bracket 22

Sensing pole	AH015-S/AH015H:S-pole
Sensing pole	AH015-N:N-pole
Magnetic sensitivity	3～4mT
Direction to detect	AH015□:Upward
Direction to detect	AH015H:Forward
OUtput current	20mA Max
Consumption current	8mA Max
Response speed	16μ sec
Cable specifications	S-pole:φ2.6 3wire,Gray 1m
Cable specifications	N-pole:φ2.6 3wire,Black 1m
Case material	AH015□:GF reinforced PBT Black
Case material	AH015H:GF reinforced PBT Gray
Mounting	M2 tightening torque 0.15N･m
Indicator light	Red
Protective strucure	IP67
Curcuit diagram	CNC-12

･By using cable options, conversion of output specifications, current amplification, and cable extension are possible.

AH023

ah023 zu 22

Sensing pole	AH023 / AH023H :S-pole
Sensing pole	AH023N / AH023HN :N-pole
Mabnetic sensitivity	Refer to below
Direction to detect	Forward
Output current	15mA Max
Consumption current	8mA Max
Cable specifications	S-pole:φ2.8 3wire,Gray 1m
Cable specifications	N-pole:φ2.8 3wire,Black 1m
Case material	GF reinforced PBT:Black
Nut material	Brass
Mounting	M12 nut tightening torque 2N･m
Mounting	It is recommendable to bond the screw in order to prevent loosening.
Mounting hole processing deimensions	φ12₀^+0.5
Indicator light	Red
Protective structure	IP67
Circuite diagram	CNC-7

■Magnetic sensitivity

Model	Magnetic sensitivity
AH023/AH023N	2.5～3.5mT
AH023H	0.7±0.15mT(High sensitivity)
AH023HN	0.8±0.15mT(High sensitivity)

･By using cable options, conversion of output specifications, current amplification, and cable extension are possible.

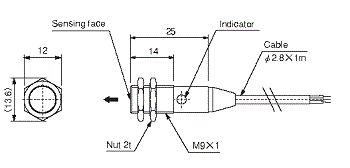

AH0241

ah0241 zu 22

ah0241 hinban 22

Sensing pole	AH0241S/AH0241HS/AH0241P :S-pole
Sensing pole	AH0241N/AH0241HN :N-pole
Mabnetic sensitivity	Refer to below
Direction to detect	Forward
Output specifications	AH0241□/AH0241H□/AH0241P/ AH0241□□-FA:NPN open collector (When proximity is turned ON)
	AH0241□□-FB/NPN open collector (When proximity is turned OFF)
	AH0241□□-FAP/PNP open collector (When proximity is turned ON)
Output current	AH0241□□:15mA Max
Output current	AH0241□□-FA/FB/FAP :80mA Max
Consumption current	AH0241□□:8mA Max
Consumption current	AH0241□□-FA/FB/FAP :15mA Max
Cable specifications	S-pole:φ2.8 3wire,Gray 1m
Cable specifications	N-pole:φ2.8 3wire,Black 1m
Case material	GF reinforced PBT:Black
Nut material	Brass
Mounting	M9 nut tightening torque 0.5N･m
Mounting hole processing deimensions	φ9 ₀^+0.5
Indicator light	Red
Protective structure	IP67
Circuite diagram	AH0241□□：CNC-17
	AH0241□□-FA：CNC-25
	AH0241□□-FB：CNC-26
	AH0241□□-FAP：CNC-24

■Magnetic sensitivity

Model	Magnetic sensitivity
AH0241	2.5～3.5mT
AH0241HS	0.8±0.2mT(High sensitivity)
AH0241HN	0.9±0.2mT(High sensitivity)
AH0241P	0.5±0.1mT(Ultra high sensitivity)

･Cable ectension are possible.

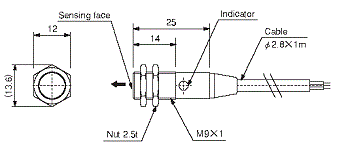

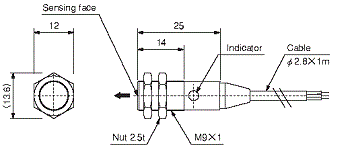

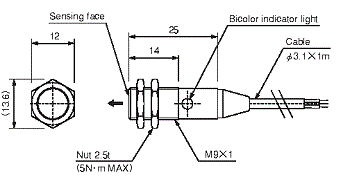

AHM0241

ahm0241 zu 22

ahm0241 hinban 22

Sensing pole	AHM0241S/AHM0241HS/AHM0241P :S-pole
Sensing pole	AHM0241N/AHM0241HN :N-pole
Mabnetic sensitivity	Refer to below
Direction to detect	Forward
Output specifications	AHM0241□/AHM0241H□/AHM0241P/ AHM0241□□-FA:NPN open collector (When proximity is turned ON)
	AHM0241□□-FB/NPN open collector (When proximity is turned OFF)
	AHM0241□□-FAP/PNP open collector (When proximity is turned ON)
Output current	AHM0241□□:15mA Max
Output current	AHM0241□□-FA/FB/FAP :80mA Max
Consumption current	AHM0241□□:8mA Max
Consumption current	AHM0241□□-FA/FB/FAP :15mA Max
Cable specifications	S-pole:φ2.8 3wire,Gray 1m
Cable specifications	N-pole:φ2.8 3wire,Black 1m
Case,nut material	SUS303
Mounting	M9 nut tightening torque 5N･m
Mounting hole processing deimensions	φ9 ₀^+0.5
Indicator light	Red
Protective structure	IP67
Circuite diagram	AHM0241□□：CNC-17
	AHM0241□□-FA：CNC-25
	AHM0241□□-FB：CNC-26
	AHM0241□□-FAP：CNC-24

■Magnetic sensitivity

Model	Magnetic sensitivity
AHM0241	2.5～3.5mT
AHM0241HS	0.8±0.2mT(High sensitivity)
AHM0241HN	0.9±0.2mT(High sensitivity)
AHM0241P	0.5±0.1mT(Ultra high sensitivity)

･Cable ectension are possible.

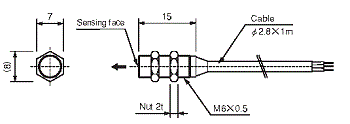

AHM026

Sensing pole	S-pole
Magnetic sensitivity	3～4mT
Direction to detect	Forward
Output current	20mA Max
Consumption current	8mA Max
Response speed	16μ sec
Cable specifications	φ2.8 3wire, Gray 1m
Case,nut materials	SUS303
Mounting	M6 nut tightening torque 2N・m
Mounting hole processing deimensions	φ6 ₀^+0.5
Protective structure	IP67
Circuit diagram	CNC-4

・By using cable options, conversion of output specifications,current amplification, and cable extension are possible.

AHM028

Sensing pole	AHM028-S:S-pole
Sensing pole	AHM028-N:N-pole
Magnetic sensitivity	3～4mT
Direction to detect	Forward
Output current	20mA Max
Consumption current	8mA Max
Response speed	16μ sec
Cable specifications	S-pole:φ2.8 3wire, Gray 1m
Cable specifications	N-pole:φ2.8 3wire, Black 1m
Case,nut material	SUS303
Mounting	M8 nut tightening torque 2N・m
Mounting hole processing deimensions	φ8 ₀^+0.5
Indicator light	Red
Protective structure	IP67
Circuit diagram	CNC-12

・By using cable options, conversion of output specifications,current amplification, and cable extension are possible.

AHM029

Sending pole	Two output for S-pole and N-pole
Magnetic sensitivity	0.8±0.1mT
Direction to detect	Forawrd
Output current	20mA
Consumption current	12.5mA
Response speed	16μsec or less
Cable specifications	φ3.1 4wire, Black 1m
Case,nut material	SUS303
Mounthing	M12 nut tightening torque 12N・m
Mounting hole processing deimensions	φ12 ₀^+0.5
Indicator light	S-pole:Red
Indicator light	N-pole:Green
Protective structure	IP67
Circuit diagram	CNC-23

・Cable extension are possible.

AHM030

Sending pole	Two output for S-pole and N-pole
Magnetic sensitivity	0.8±0.1mT
Direction to detect	Forawrd
Output current	20mA
Consumption current	12.5mA
Response speed	16μsec or less
Cable specifications	φ3.1 4wire, Black 1m
Case,nut material	SUS303
Mounthing	M14 nut tightening torque 18N・m
Mounting hole processing deimensions	φ14 ₀^+0.5
Indicator light	S-pole:Red
Indicator light	N-pole:Green
Protective structure	IP67
Circuit diagram	CNC-23

・Cable extension are possible.
