Limit switch

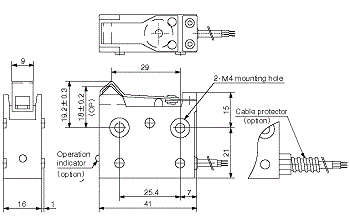

ModelDimensions(mm)Specifications

HS1

HS1 en hinban

■Features

・Contactless circuit

  Suoerior reliability and long functional life compared to mechanical contact switches, durable more than 20 million operations.

・Shielded structure

  Immune to hostile environments, available under such conditions as pouring water/oil.

・Stable operation

  Because such parts susceptible to common troubles as hinges and sliding parts, are not exposed, stable operation can be assured.

・High sensibility

  The accuracy of the repeatability of operating points is ±0.02mm.



HS1 en zu

HS1 en example

Strock 3.3mm
Operating force 1.2N

Movement until

the operation[PT]

1.4mm
Hysteresis movement[MD] 0.5mm
Operating position[OP] 18±0.2mm
Repeatable precision 0.02mm
Case material Aluminum alloy-Black alumite treatment

Material of chevron

shaped lever

SUS304 nitriding treatment(Hmv1300)
Material of flexural plate Polymide resin plate
Material of corrugated seal Polimide plate 0.75μ
Material of cable seal Nitrile rubber
Material of cable protector SUS304
Indicator light HS1/HS1-G : Without indicator light

HS1P/HS1P-G : Red

Protective structure Equivalent of IP67
Curcuit diagram Without LED : CNC-1
With LED : CNC-20
