Mags for Magnetic proximity sensors

Combination of Mag and Magnetic proximity sensors

Mag is a unit combining a magnet and a bracket / cover to make mounting on machinery easier. By using a magnetic proximity sensor in combination with a Mag, the sensing area takes a circular shape as shown in the figure, thus steady pickups of a magnetism approach from any direction can be achieved. The combining way of a proximity sensor (the magnetic sensitivity) and a Mag (magnetic strength) decides the extent of the sensing area.
AG0304 and AG05015 models, rare-earth naked magnets can be installed effectively in a limited space by direct embedding into a machinery part.

Sensing Area

Our Lineup of Mags

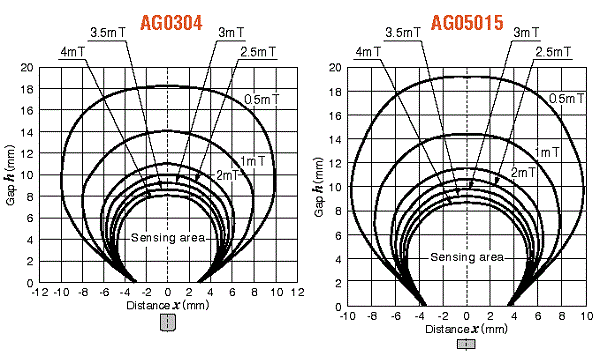

Magnetic property charts show the measurements of the components perpendicular to the X-axis of the magnetic distribution.

ModelDiagramsMagnetic property
AG001KAG001K AG001K Diagram AG001 Magnetic propertyCLICK TO ENLARGE
AG001KHAG001KH AG001KH Diagram
AG002KAG002K AG002K Diagram AG001 Magnetic propertyCLICK TO ENLARGE
AG002KHAG002KH AG002KH Diagram
AG003KAG003K AG003K Diagram AG001 Magnetic propertyCLICK TO ENLARGE
AG003KHAG003KH AG003KH Diagram
AG004KAG004K AG004K Diagram AG001 Magnetic propertyCLICK TO ENLARGE
AG004KHAG004KH AG004KH Diagram
AG0304AG0304 AG0304 Diagram AG0304 AG5015 Magnetic propertyCLICK TO ENLARGE
AG5015AG5015 AG5015 Diagram
AG009Kag009k ag009k en zu ag009k en propertyCLICK TO ENLARGE
ADG02adg02 adh02 en zu adh02 en propertyCLICK TO ENLARGE
ADG02Xadg02x adh02x en zu
AG0010Sag0010s ag0010s en zu ag0010 en propertyCLICK TO ENLARGE
AG0010Lag0010l ag0010l en zu

Note: Due to the strong magnetism, please keep any products susceptible to magnetism such as a watch away from Magnet.
