Micro switches

Home  Product Info  Contactless touch switches  Micro switches
ModelDimensions(mm)Specifications

MS1

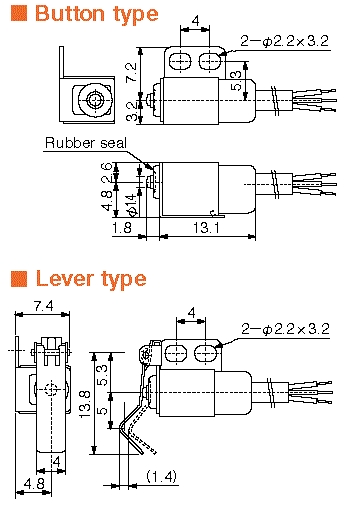

ms1 hinban 22

ms1 zu 22


Stroke 1mm
Operating force Refer to below

Movement until

the operation[PT]

 0.15～0.4mm
Repeat accuracy ±0.002mm
Cable specifications

MS1A-□：φ2.8 3wire, Gray 1m

MS1B-□：φ2.8 3wire, Black 1m
Operation temperrature range

With seal：10 ～ 60℃（Without condensation）

Without seal：－20 ～＋85℃（Without condensation)
Case material GF reinforced PBT：Black
Rubber seal material Nitrile rubber
Curcuit diagram CNC-3

 ・By using cable options, conversion of output specifications, current amplification, and cable extension are possible.



ms1 exa 22

MR1

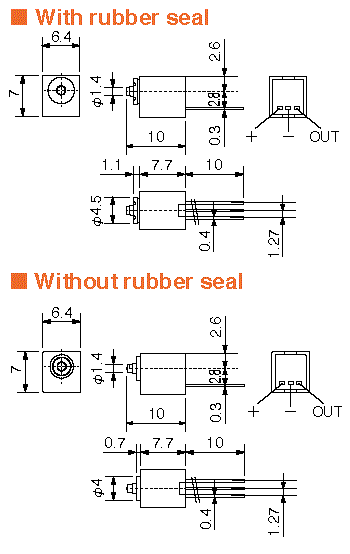

mr1 hinban 22

mr1 zu 22
Stroke 1mm
Operating force Refer to below

Movement until

the operation[PT]

 0.15～0.4mm
Repeat accuracy ±0.001mm
Operation temperrature range

With seal：10 ～ 60℃（Without condensation）

Without seal：－20 ～＋85℃
（Without condensation）
Case material GF reinforced PBT：Black
Rubber seal material Nitrile rubber
Curcuit diagram CNC-3



mr1 exa 22

MR2

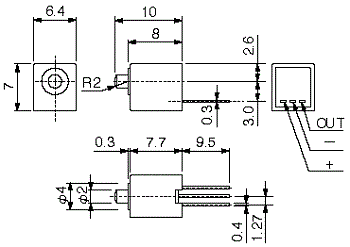

mr2 hinban 22

mr2 zu 22
Stroke 2mm
Retention 1.6mm or less
Operating force 0.5N

Movement until

the operation[PT]

 0.15～0.4mm
Hysteresis movement[MD] 0.1mm or less
Repeat accuracy ±0.001mm
Case specifications

MR2A : Gray

MR2B : Black
Case material GF reinforced PBT
Curcuit diagram CNC-3
